測試開關電源采用專用示波器軟件更快

　　為了滿足效率和形式因素的要求，開關模式電源制造商正在納入新的半導體和電路拓?fù)浣Y(jié)構，同時也堅持更高的電源完整性標準。因此，設計者必須作出更復雜的測量開關模式波形，增加了測試時間，并增加了成本。

　　為了減少測試時間，測試設備制造商已經開發了硬件和軟件，共同實現自動化的許多功能和復雜的分析。這種結合的一個很好的例子是功率分析儀軟件hdo4104 Teledyne LeCroy示波器。本文將介紹如何兩個可以用來進行關鍵分析，以縮短電源的開發和測試。

　　Efficiency， weight， and size drive innovative design and test approaches

　　Switched-mode power conversion， be it in power supplies， inverters， DC-DC converters， or motor controllers， offers the advantages of higher power efficiency and smaller size and weight for a given power level. However， these features have a cost in the form of greater complexity and higher component stress.

　　To address this， manufacturers are turning to new semiconductor types， a wider range of circuit topologies， and higher standards of power integrity. However， these demand detailed analysis of key characteristics such as：

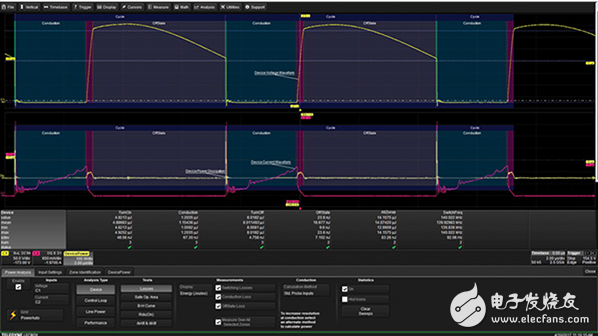

　　Power losses

　　Safe operating area （SOA）

　　Control-loop margins

　　Line power integrity

　　Power supply performance
